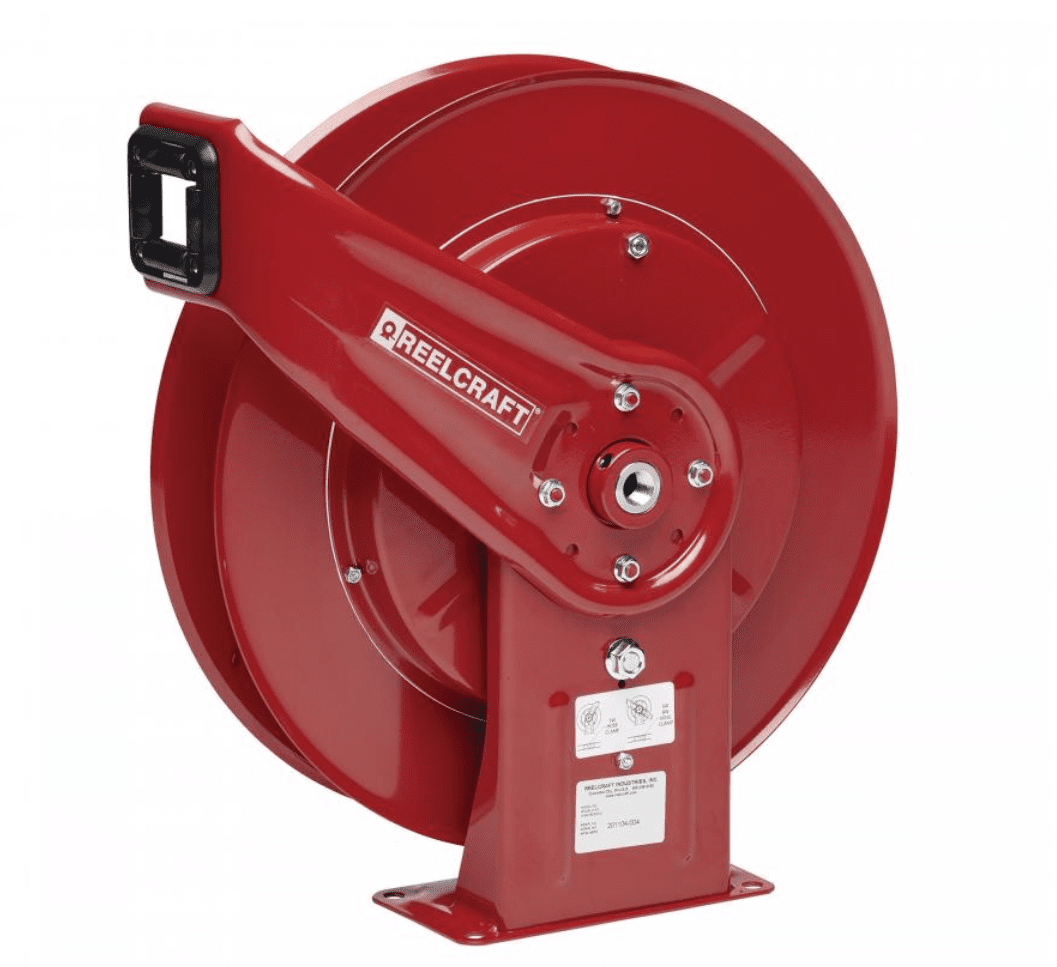

Red industrial hose reel with mounting bracket.

7800 OLP – 1/2 in. x 50 ft. Premium Duty Hose Reel

Call for today’s best price and to order the reels you need.
This site features the most popular Reelcraft reels –
there are many more to choose from.
Call us for more reel information…
McGuire Air Compressors - (336) 229-9999
or email
hosereels@mcguire.biz for a quote.

The Reelcraft Series 7000 spring retractable hose reel is very robust and ideal for the most demanding applications. The base and guide arm are constructed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength.

  • Individually powder-coated steel components offer maximum protection from premature corrosion
  • Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel
  • Guide arm adjusts to seven positions
  • Base plate, upright, and guide arm are constructed from 11 gauge steel; the spool is 16 gauge steel
  • Additional Series 7000 reel models include stainless steel, controlled return, enclosed, twin hydraulic, fuel delivery, pressure wash, and gas/cable welding
  • Made in the USA

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.

1/2 x 50ft Premium Duty Hose Reel

Price : $ 528.25

Reel Specifications and Dimensions

Weight 41 lbs
Series 7000
Hose I.D. 1/2"
Hose O.D. 0.75"
Hose Length 50'
Pressure 500 psi
Inlet 1/2" NPT(F)
Reel Outlet 1/2" NPT(F)
Hose Included No
Max Temperature 210 °F
UPC 699567001195
Carton Dimensions 23.375" × 9.375" × 25.5"
Technical drawing of a mechanical reel with measurements.
A 20.25"
B 19.75"
C 7.8125"
D 3.875"
E 7"
Internal Fluid Path Steel
Swivel Assembly Steel
Swivel Seal Buna
